Optical Coating
Anti-reflecrtive
It is a coating technique that increases the penetration of visible light by minimizing the reflection of visible light wavelength (400nm to 700nm).
Principle
It is a vacuum thin film deposition technology that repeatedly coats the product with highly refractive and low refractive drugs using a vacuum thin film deposition machine to form an unreflective thin film on either side or both sides through interference phase distance.

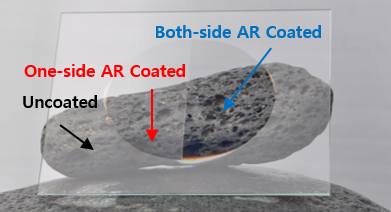

Anti-reflective Coating
Uncoated
One-side coated
Both-side coated
Effect
As the penetration rate of light increases, clear vision can be achieved, and as the reflection rate decreases, the display’s unique color can be implemented to reduce eye fatigue by improving clarity.
Applcable fields
- Lens such as glasses/camera
- Display monitor panel such as PC/Smart Phone/Navigation
- Glass for watches/solar batteries, etc.

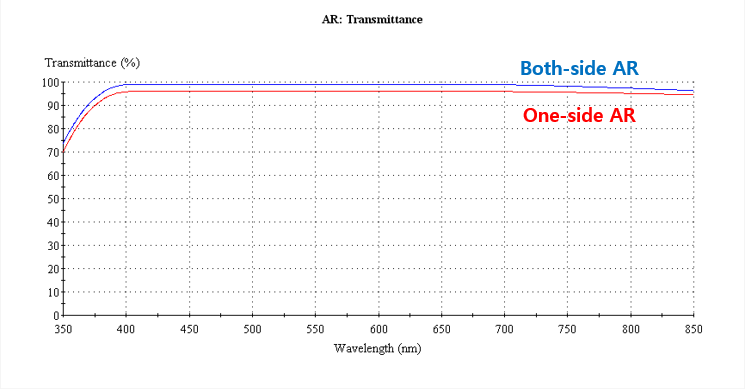

Transmittance of Anti-reflective Coating
