Optical Coating
Beam Splitter
It is used to separate the Incident Light into two beams at a specified rate.
Principle
Due to the effect of the coated thin film, the light source becomes reflected and transmitted light at a certain wavelength and is divided into different directions (usually 90°).

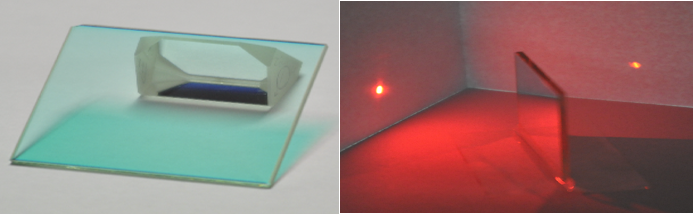

Plate Beam Splitter

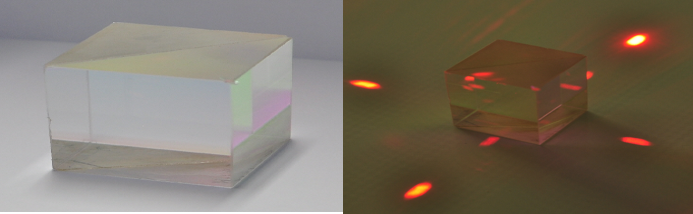

Cube Beam Splitter

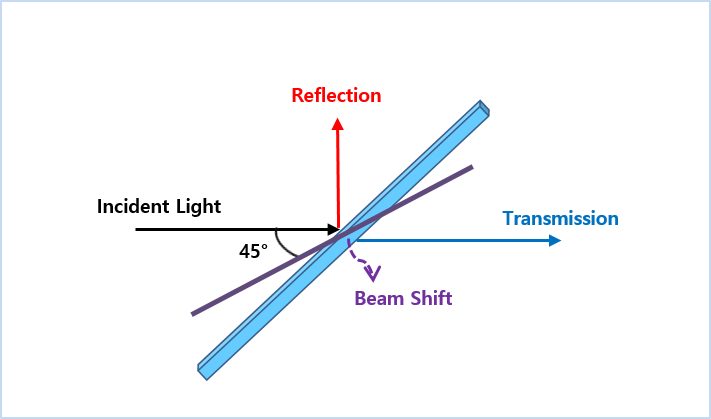

Principle of Plate Beam Splitter

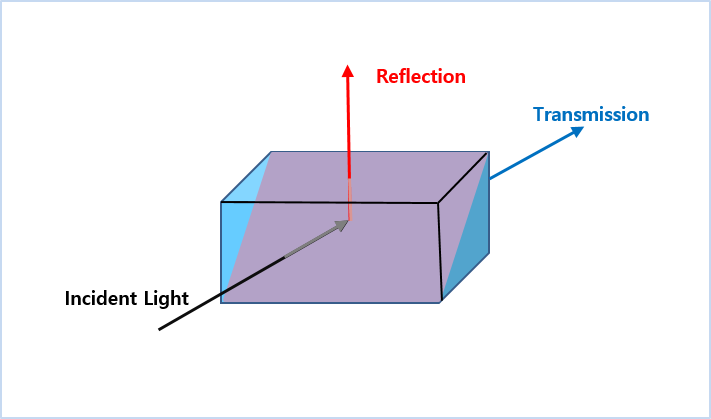

Principle of Cube Beam Splitter
Effect
Repeated separation of light sources by a number of different thin-film properties enables optical measurements of light and applicable to display equipment, where refracted light appears due to light interference effects divided by reflection / transmittance patterns.
Applcable fields
- 3D imaging field such as Hologram / 3D stereoscopic image
- Display fields such as Beam Projector
- Light Separator
- Optical Measuring Equipment / Military Optical Equipment / Various Medical Equipment
