Optical Coating

Infrared Filter

 It is a coating technique designed to minimize the transmittance of visible light wavelengths (400nm to 700nm) and selectively penetrate only near-infrared wavelengths above 800nm.

Principle

 It is a vacuum thin film deposition technology that repeatedly coats products with high refractive and low refractive drugs to reduce visible light transmittance through interference phase distance and selectively increase near-infrared transmittance.£

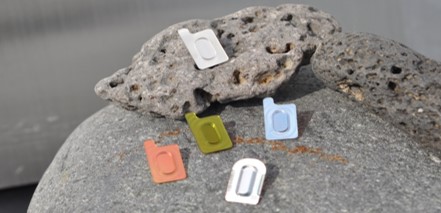

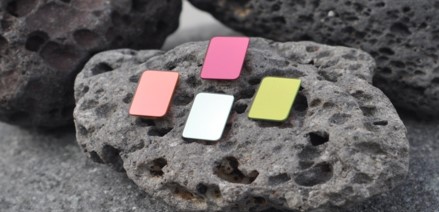

Infrared filters in various colors

Infrared filters in various colors

Effect

 Only near-infrared specific wavelengths can be transmitted without interference from visible light wavelengths, enabling effective performance in sensor modules that detect and operate target movements using infrared wavelengths through IR LEDs. In addition, we can produce IR filters in a variety of colors as well as existing silver products with our unique technology.

Applcable fields

  • Near Infrared (780 to 1400 nm) Sensor Filter
  • UV Protection Filter
  • Thermal (Infrared) Block (0.08 to 3 μm) Filter

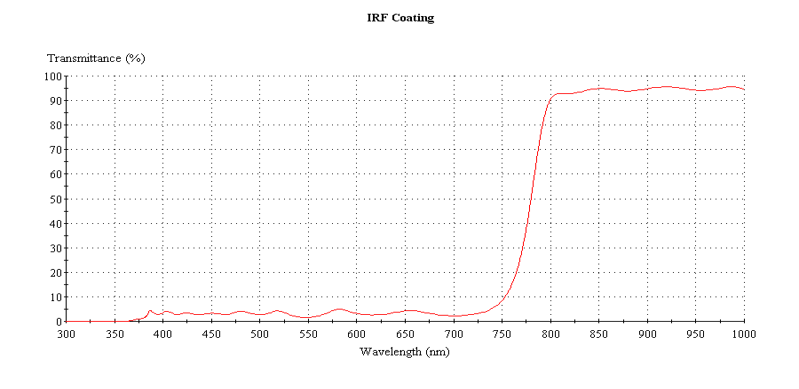

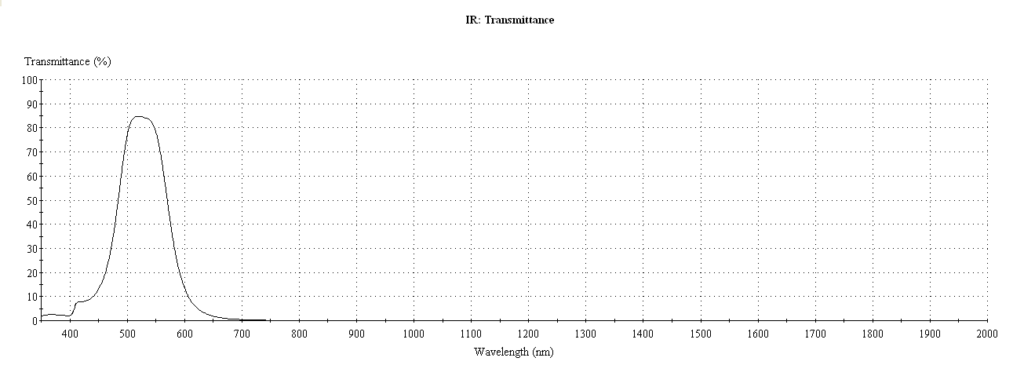

Transmittance of Infrared Filter

Transmittance of Infrared Filter
